PV Cable Extrusion Production Lines

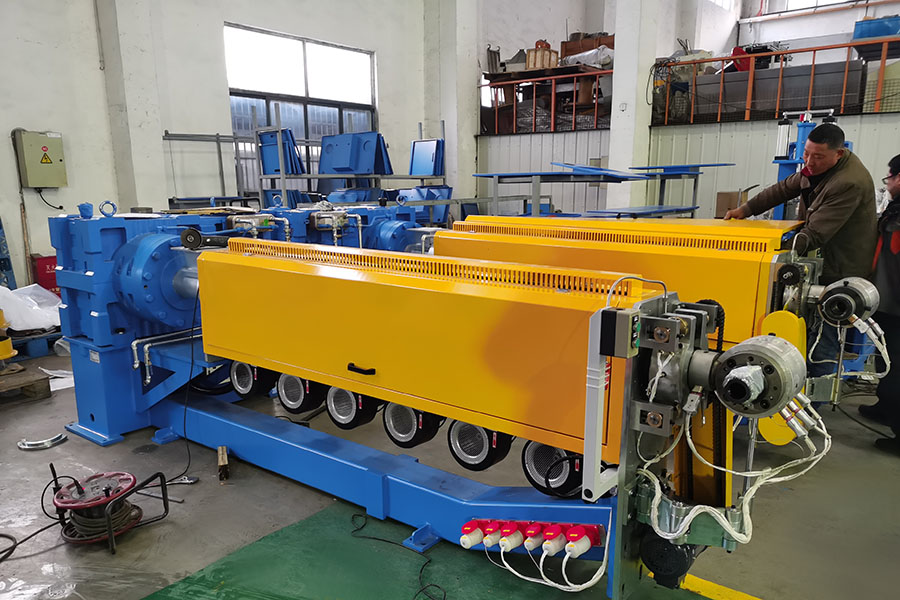

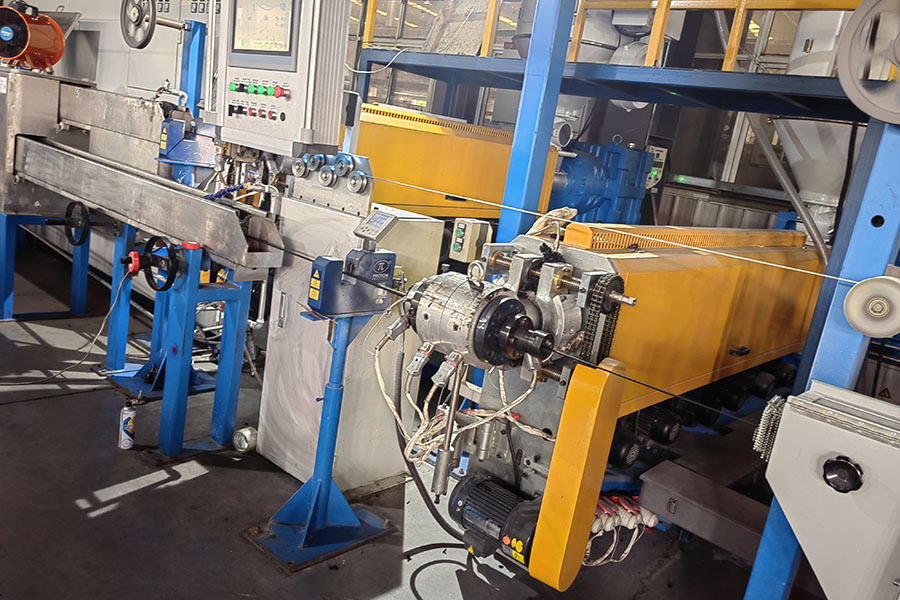

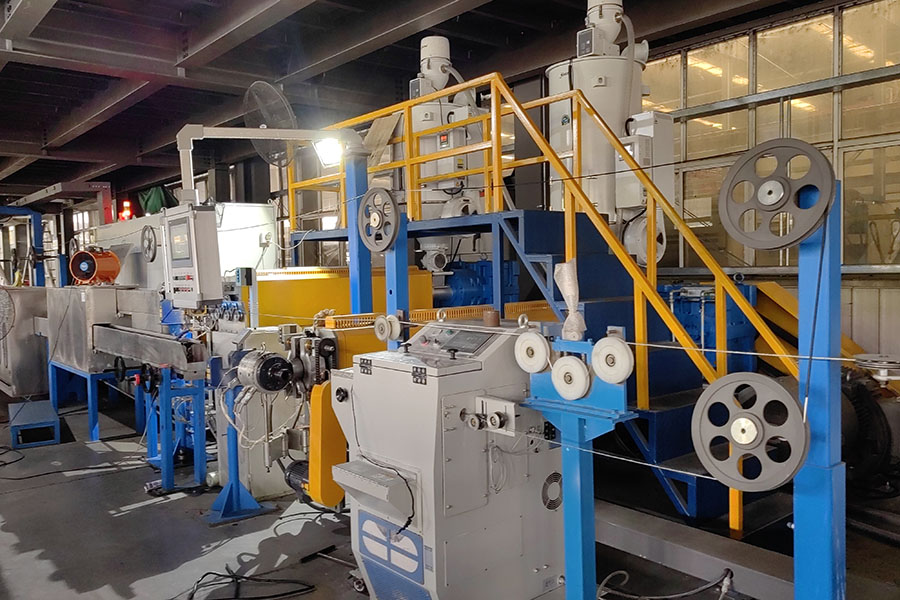

The PV Cable Extrusion Production Line is designed specifically for the high-speed insulation and sheath extrusion of photovoltaic system cables — a product category with uniquely demanding performance requirements driven by the outdoor, long-service-life nature of solar installation environments. PV cables must maintain their electrical and mechanical integrity across a 25-year or longer service life while exposed to continuous UV radiation, wide temperature cycling, moisture ingress, ozone, and mechanical stress from installation and movement. Applicable insulation and sheath materials include PE, XLPE, and other specialty compounds formulated for photovoltaic cable applications. XLPE in particular requires precise control of extrusion temperature and cross-head pressure to achieve the degree of cross-linking that delivers the required long-term heat resistance, UV stability, and flame retardancy. The screw and barrel system on this line is configured to handle both conventional PE and XLPE compounds with minimal changeover requirements, supporting manufacturers who produce multiple PV cable variants on a single production asset. The line is engineered for high linear speed output, reflecting the volume demands of the rapidly growing solar energy market. Consistent wall thickness and concentricity are maintained through closed-loop diameter monitoring and automatic cross-head correction, ensuring that every meter of output meets the tight dimensional tolerances specified in IEC 62930 and other PV cable standards. Spark testing is integrated inline to provide continuous electrical integrity verification without reducing line speed.UV resistance of the cable insulation and sheath begins with material formulation, but is also sensitive to the thermal history of the compound during extrusion. The temperature control system on this line is designed to minimize thermal degradation of UV stabilizer packages in the compound, protecting the long-term performance properties of the finished cable. This production line is well positioned for manufacturers supplying solar farm developers, rooftop installation contractors, and PV module integrators in markets where IEC 62930 and TÜV certification are purchasing prerequisites.
