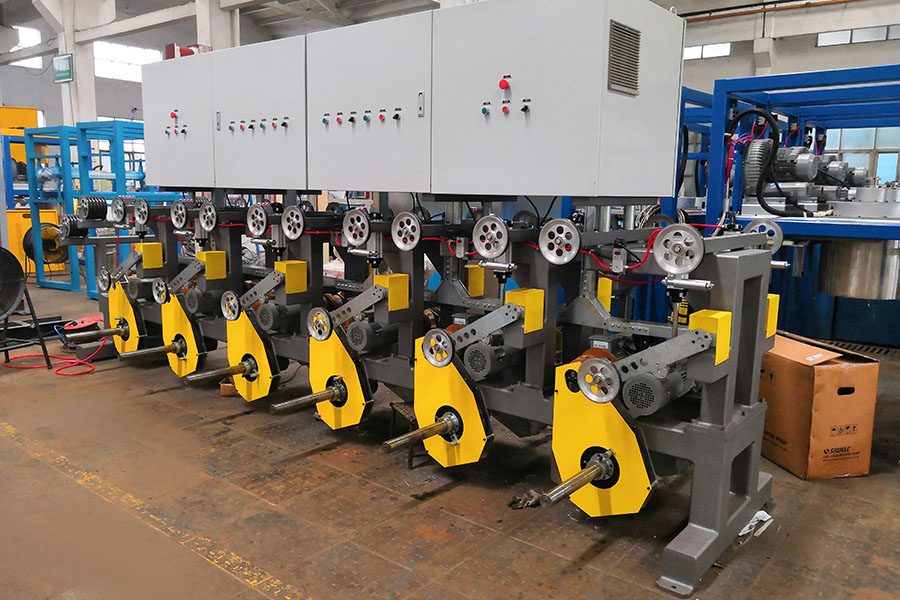

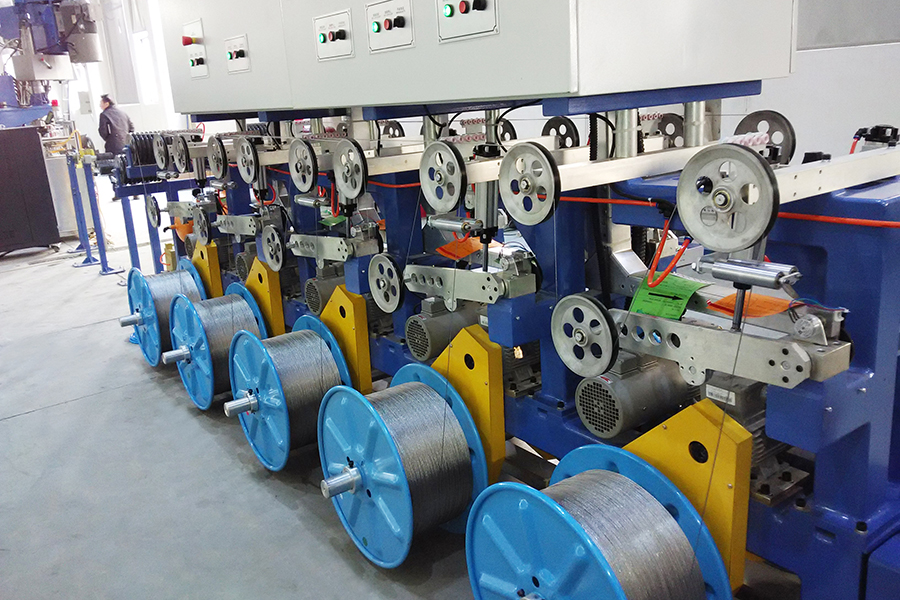

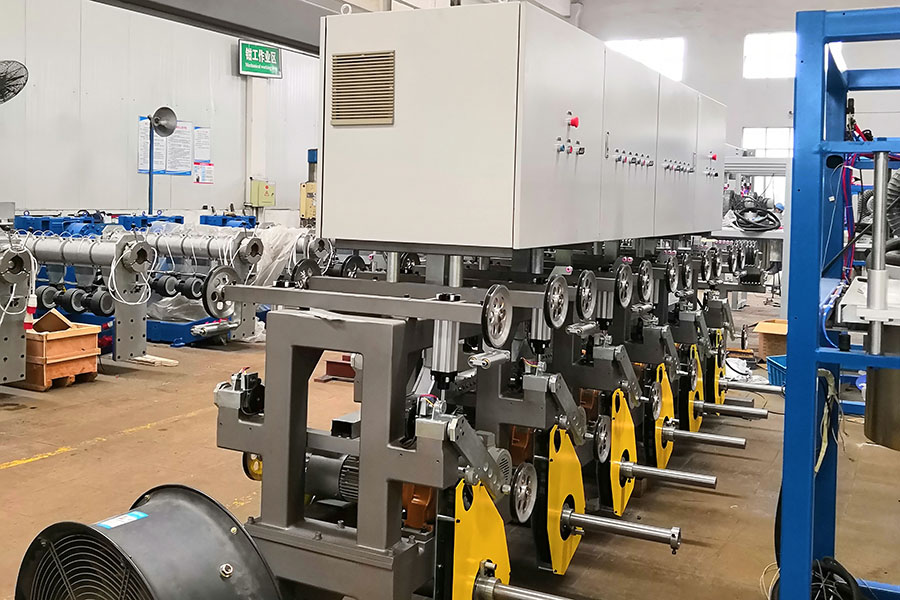

Multiple Pay-Off Machine(Φ500-600mm)

The Multiple Pay-Off Machine, configured for reel diameters in the Φ500mm to Φ600mm range, is designed to feed multiple individual wires or conductors simultaneously into a downstream stranding, bunching, or cabling process from a single compact machine frame. Where production processes require the synchronized parallel feeding of many individual wire elements — as is the case in multi-core stranding, braiding, and screen winding operations — the multiple pay-off machine consolidates what would otherwise require multiple individual pay-off stands into a single, space-efficient unit with centralized tension management. Each pay-off position is equipped with its own tension control mechanism, ensuring that every individual wire is delivered to the downstream process at the correct, independently programmable tension level regardless of differences in reel diameter, wire stiffness, or reel fill status between positions. This per-position tension independence is critical for stranding quality — unequal input tensions are one of the primary causes of lay pitch irregularity and helical geometry defects in the finished conductor or cable. The Φ500mm to Φ600mm reel size range makes this machine well matched to the bobbin formats commonly used in fine to medium wire drawing operations, covering a range of conductor cross-sections typical for multi-wire stranding applications. The frame design positions the pay-off reels in a geometric arrangement that minimizes wire path length and approach angle variation between positions, reducing the tension disturbances that arise from unequal wire paths in multi-wire feeding systems. Quick-change bobbin mounting and ergonomic reel loading access reduce the time and physical effort required for reel changeovers, supporting efficient operation in high-turnover fine wire production environments.
