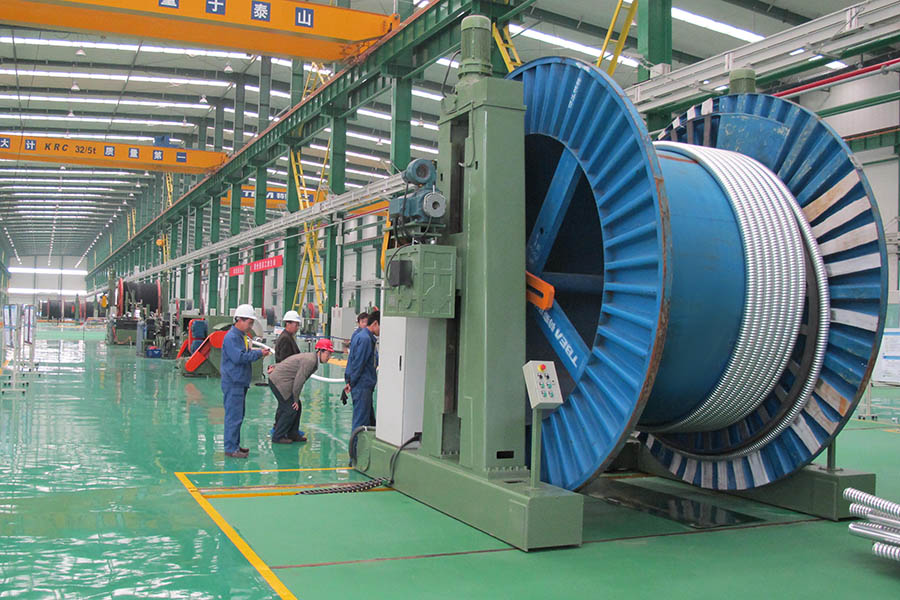

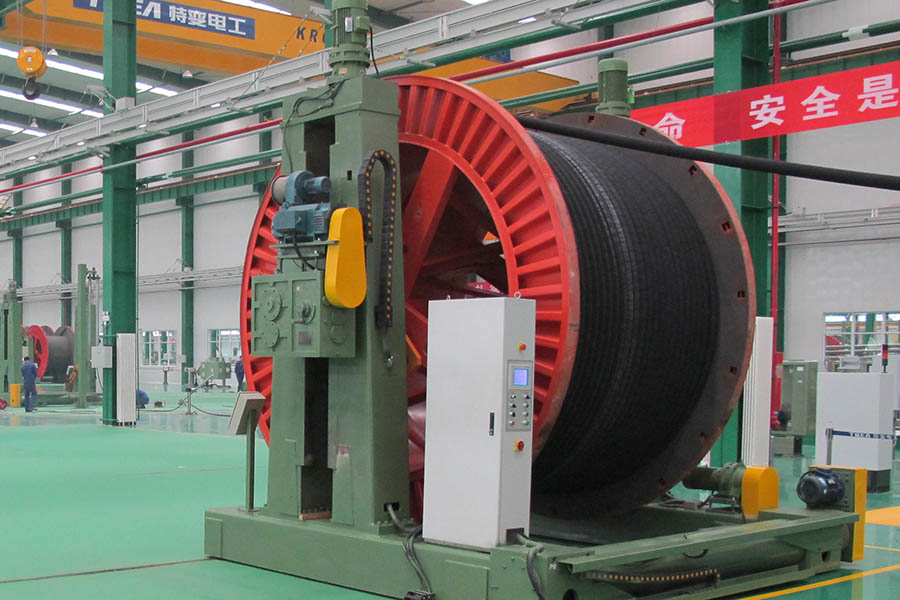

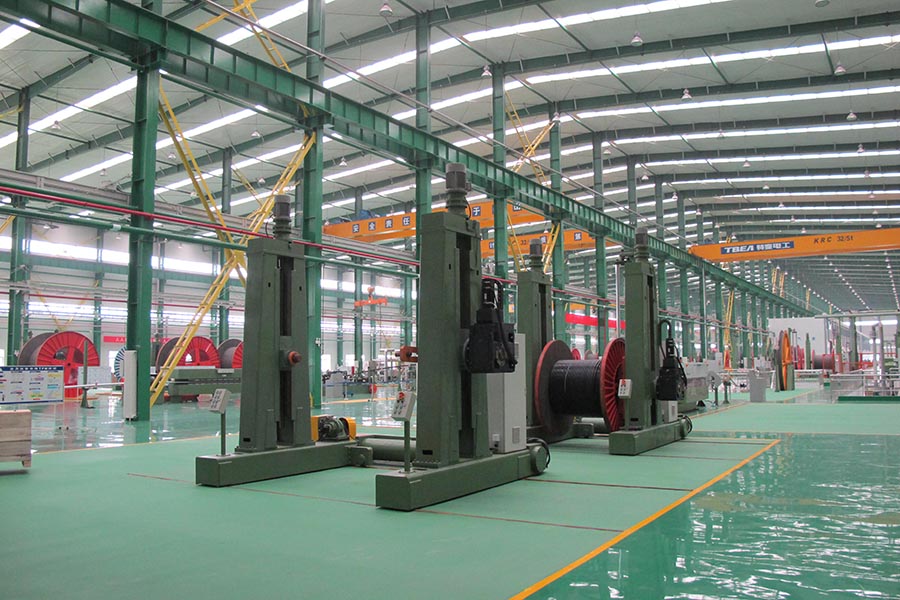

TUB(POB)‘L’ Type Moveable Take-up(Pay-off) Machine

The TUB(POB) 'L' Type Moveable Take-Up and Pay-Off Machine offers a mobile cable winding and pay-off solution built around an L-frame structural configuration, providing an alternative geometry to the A-frame design that is particularly suited to production environments where lateral space is constrained or where the machine's positioning adjacent to walls, pillars, or other fixed production equipment must be maximized for floor space efficiency.
The 'L' Type designation describes the machine's characteristic right-angle frame profile, in which a vertical support column and a horizontal base arm form an L-shaped structure. This configuration concentrates the machine's structural volume on one side of the reel mounting axis, leaving the opposite side fully open and unobstructed. The result is a machine that can be positioned with its open side against a wall or adjacent to another machine, reclaiming floor space that a symmetrical or A-frame design would occupy with support structure.
The wheeled base with locking castors provides full repositioning flexibility, enabling the machine to be moved to any required production station and secured firmly in place for operation. The L-frame's single-sided structural approach keeps the overall machine width compact, improving maneuverability in narrow aisle configurations and facilitating access to adjacent equipment during concurrent maintenance activities.
Tension control is provided through a braking or torque-drive system calibrated to the reel diameter range and cable specification range applicable to this machine class, with consistent performance across the full reel fill cycle from empty core to finished reel. Reel loading and exchange operations are supported from the open side of the L-frame, providing clear vertical clearance for crane or forklift engagement without structural obstruction.
The TUB(POB) 'L' Type is a practical and space-conscious choice for production environments where floor area is at a premium and flexible equipment deployment is a routine operational requirement.
